Ginseng Treatment Solutions
Water Treatment and Re-Use for Buildings, Infrastructure and Industrial Applications
Ginseng Nano

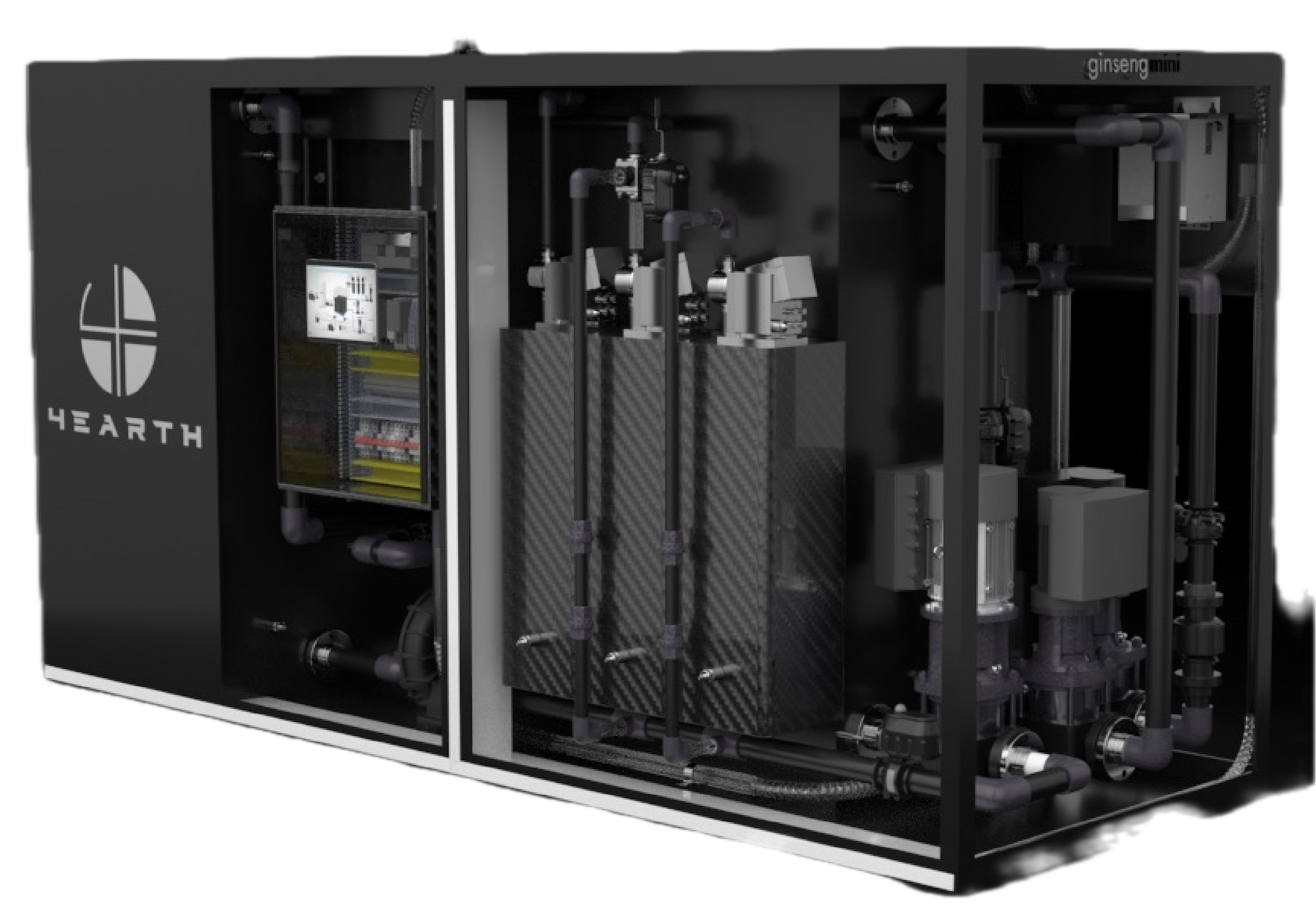

Ginseng Mini

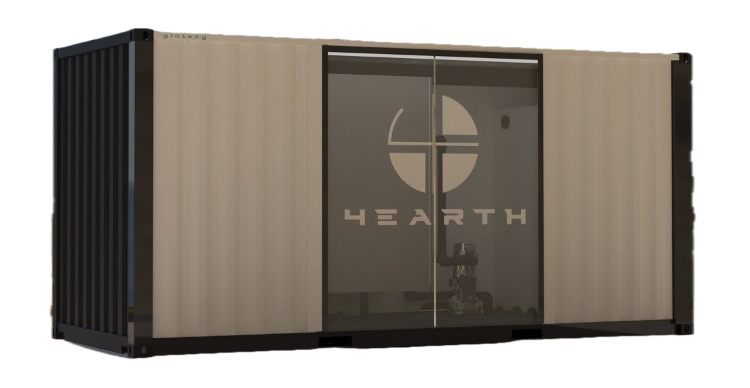

Ginseng 20

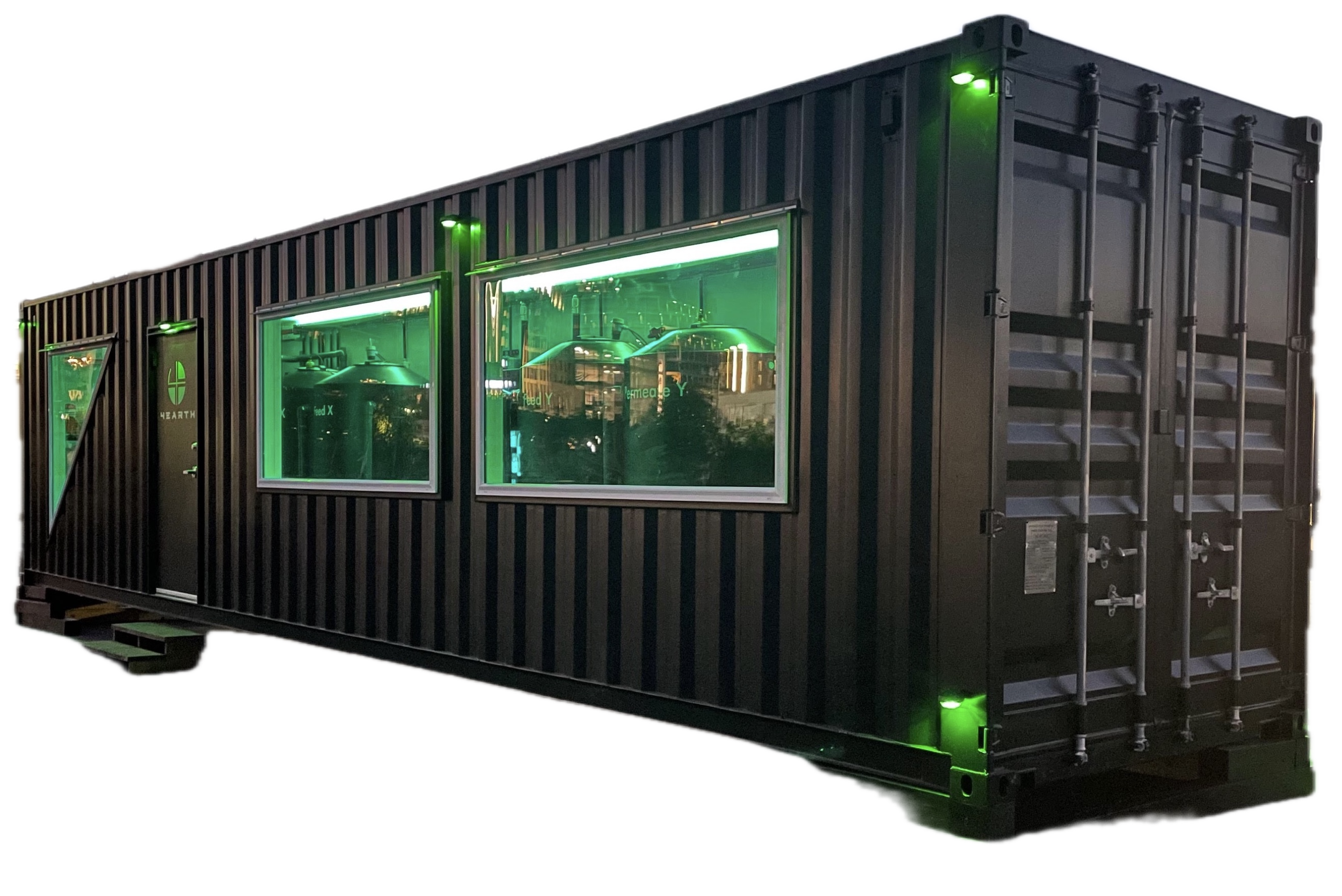

Ginseng 40
Markets
Residential, Commercial, Office Buildings and Campuses
Medium Commercial & Industrial
Large Commercial and Industrial
Applications
Freshwater, Greywater, Groundwater and Blackwater
Freshwater, Greywater, Groundwater, Blackwater and Industrial Wastewater
Sizes
2 m2
5 m2
15 m2
30 m2
Capacity
(litres per day)
50,000
300,000
2,000,000
6,000,000
Saving /
Typical ROI
95% Re-Use with 2 to 3 years ROI for a typical application
Ginseng Nano
Ginseng Mini
Ginseng 20
Ginseng 40
Ginseng Tech Stack
Hardware and Software Together
Advanced Automation Package controls all aspects of the system, including:
Membrane function
Supporting process equipment
Process pumps & motors
Storage tanks for membrane cleaning
Actuated valves operation
Instrumentation and telemetry for data feedback, control and analytics
PLCs and automated process control
All via a human-machine interface that offers a modern user interface and experience

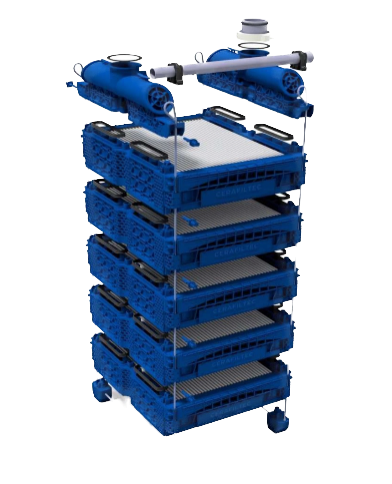

Parameter
Specification
Membrane Material
Ceramic
(Alumina Oxide)
Configuration
Submerged Flat Sheets
Pore Size
0.1 microns
Operating Temp
5 to 60 deg C
Max. Filtration Flux
300 LMH
Max. Backwash Flux
600 LMH
